The Salt on the Antenna
The first decision is positional rather than musical. A temporary FM dipole sits below the cliff crest, low enough for the rock to interrupt the strongest gusts while leaving the intended listening area exposed to the signal.
As the tide begins to turn, one person holds the folded mast and another tensions three nonconductive guys. The windward line pulls hard. Salt is already perceptible on the lips. At the feed point, exposed copper has only a brief interval before airborne saline moisture begins settling across it.
Rig Before the Water Returns
The installation plan reserves 25–40 minutes above the advancing waterline. That window includes erecting the mast, sealing the coaxial feed point, completing a pull test on every anchor and conducting a dry inspection before transmission begins. A hurried seal made under incoming water pressure usually hides the very junction that needs the closest attention.
For a half-wave dipole, the starting total element length in metres is approximately 143 divided by the assigned frequency in megahertz. Each leg is then trimmed while checking the antenna in its installed position. Tuning it flat on the ground ignores the cliff, rigging and final antenna geometry.
Let the Cliff Decide
The coastal landscape actively determines mast position, installation time and viable antenna geometry. Those physical decisions shape the eventual sound before a single stem enters the broadcast chain.
This is the useful tension in site-specific radio transmissions. The coast behaves as an aggressive collaborator: it threatens the apparatus while supplying the timing, friction and scale that give the work its character.
Why the Coast Destroys Standard Audio Gear
A dry-looking connector can already be carrying the conditions for failure. Microscopic chloride residue holds moisture across adjacent contacts, so an inspection based only on visible wetting misses the more persistent threat.
Three Conditions for Galvanic Attack
Galvanic corrosion requires dissimilar metals, electrical contact and an electrolyte. Wind-driven saline moisture supplies that electrolyte at connector shells, mast clamps and grounding hardware. The hardware survey must therefore follow every metal junction: nickel-plated shells against bare aluminium, copper braid beside steel fasteners, and grounded enclosures touching dissimilar mast fittings.
The resulting fault rarely arrives as a dramatic blackout. During sustained exposure, intermittent leakage may first appear as elevated noise, unstable control voltages or RF power folding back. Those symptoms form a chloride-film-to-guy-wire-hum breakdown chain: salt deposition alters an electrical junction, control or RF behaviour becomes unstable, and the defect enters the audible work as noise, drift or interruption.
Studio Assumptions Meet Coastal Exposure
Standard studio equipment expects stable temperature, controlled humidity and clean connectors. Typical field equipment tolerates brief rain or handling outdoors, yet sustained coastal exposure keeps testing seams, vents and untreated boards long after a shower has passed.
Uncoated circuit boards and open connectors should be inspected at the end of each 8–12 hour operating period. Particular attention goes to condensation paths and residue between adjacent conductors. Past deployment limits are clearest here: untreated boards can lose stable operation when condensation and salt bridge points that remain electrically separate in a dry room.
This inspection interval is a working threshold for sustained exposure rather than a universal component lifespan. Enclosure design, board layout and the exact pattern of salt deposition still govern where leakage first appears.

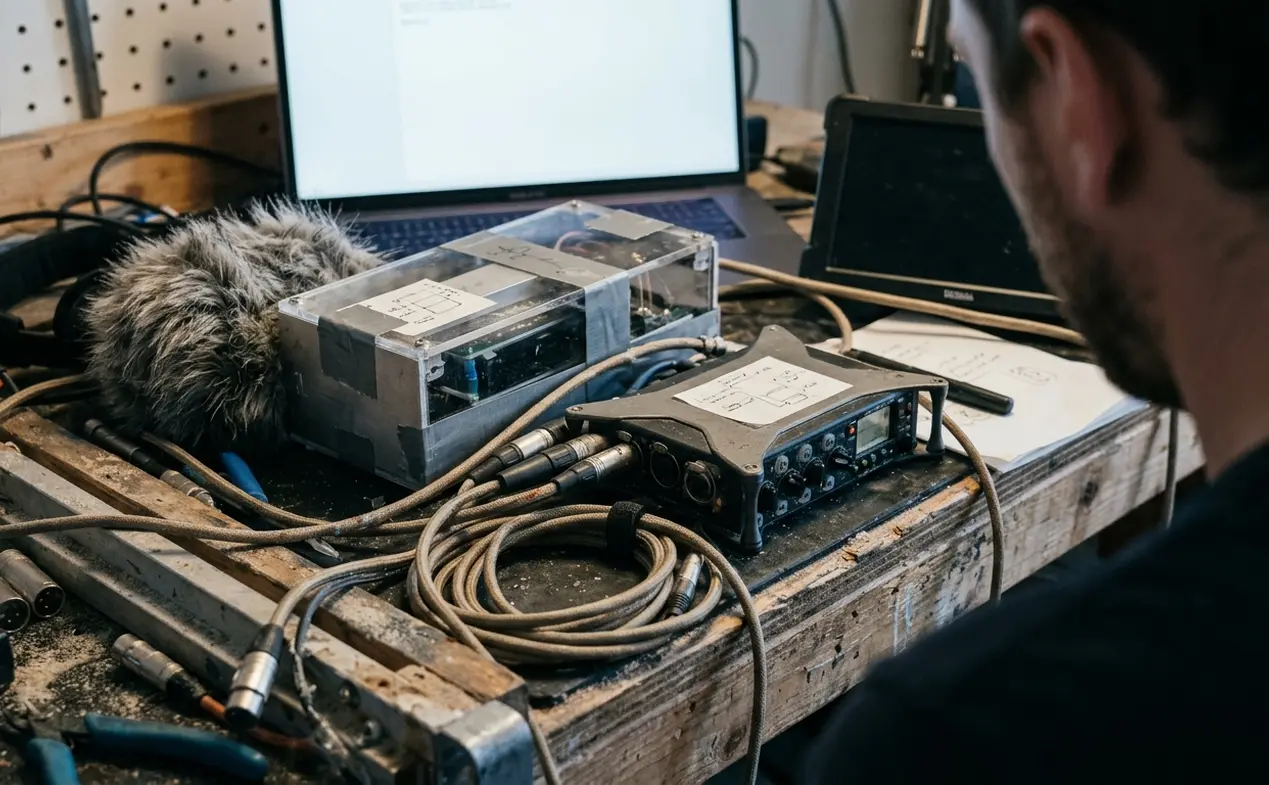

Weatherproofing the Broadcast Chain
Protection begins at the antenna and moves inward. That order keeps the most exposed junctions visible during preparation and prevents a carefully housed transmitter from being undermined by one wet RF connection above it.
Seal the Signal Path
- Prepare each RF connector. Clean it, tighten it to the specified torque and apply a thin dielectric-grease barrier at the mating surfaces.
- Wrap for runoff. Overlap the wrapping so water sheds away from the connection instead of collecting at an upward-facing edge.
- Coat exposed boards selectively. Use a conformal coating compatible with the fitted components. Mask switches, heat sinks, tuning points, connector contacts and any area that must remain accessible.
- House the electronics. Use marine-grade, IP67-rated enclosures where temporary immersion is a credible risk, while preserving the equipment’s required thermal behaviour.
- Inspect after assembly. Check seals, cable entries and the dry condition of the coaxial feed point before energising the chain.
The IP67 and Mudflat Boundary
An IP67 enclosure is dust-tight and tested for temporary immersion under prescribed conditions, commonly up to 1 metre for 30 minutes. That rating does not certify long-term resistance to salt corrosion. This is the IP67 enclosure versus spring-tide mudflat boundary: immersion performance answers one test, while saline residue, repeated wetting and metal compatibility remain separate design problems.
Grounding hardware in highly saline soil may use sacrificial protection, but the mandated electrical earth remains decisive. Electrode materials, bonding and anode placement require approval against the applicable electrical code and the transmitter manufacturer’s grounding instructions. A corrosion measure cannot be allowed to weaken the safety path.
Give the Mast Somewhere to Move
Wind force rises with the square of wind speed. Reducing mast height and exposed antenna area therefore has a much larger effect than simply adding a heavier base.
Low-profile rigging lets a temporary mast flex through a sudden squall. Nonconductive guys spread the load without introducing another conductive element beside the antenna. Their tension is checked after erection, after the first strong gust cycle and again at 6–8 hour intervals. The aim is controlled movement: enough compliance to absorb a gust, with enough restraint to keep the feed point and element geometry stable.
Synchronizing Playback with Tidal Rhythm
Once the hardware can survive, the tide can enter the score. Predicted water level becomes a slow control signal; local sensors temper that prediction with evidence from the installation itself.
Reconcile the Coastal Clock
The score begins by checking the tide table’s time zone and vertical datum. Local tide chart data is converted to a normalized level between the charted low and high points. A moisture probe and barometric sensor then report what is occurring at the site.
A practical control loop samples those sensors every 30 seconds, applies a rolling 5-minute median and limits parameter movement to one small step per update. This prevents a wet probe or wind-driven splash from producing an abrupt musical jump. If updates stop for 10 minutes, playback holds the last stable state rather than extrapolating beyond the known range.
Map Water to the Mix
- Use normalized tidal level to control broad, slow changes in stem density.
- Map smoothed moisture input to restrained movement in filter centre frequency.
- Let the falling or rising water alter drone pitch in measured increments.
- Keep sensor smoothing audible only through accumulation, never as a conspicuous trigger.
The beach changes acoustically with the water. High tide presents a different frequency environment from an exposed rocky low-tide shore. Tuning follows that shift through on-site listening: the broadcast can thin, darken or open as the reflective and absorptive surfaces around the listener change.
This process gives environmental data a clear musical role without turning every sensor event into theatre. The tide supplies the long phrase. Moisture and pressure make local corrections. The generative system listens slowly enough to remain part of the remote landscape.
The Midnight Low Tide
At 2:00 AM, a battery-powered receiver is carried onto the spring-tide mudflat and held above the damp surface. The final check lasts 20–30 minutes across the lowest predicted water window. Audible dropouts, enclosure temperature, supply voltage and tide-control value are logged beside each listening observation.
An Eighteen-Minute Descent
The sensor trace confirms that the water’s edge is retreating. Across an 18-minute falling-water interval, the drone fundamental moves from 83 Hz to 71 Hz. Intermediate values are quantized finely enough that no individual pitch change announces itself. Upper partials thin as the exposed shoreline expands.
A receiver hiss hangs beside the distant surf. The person on the mudflat checks the supply voltage, looks once toward the dark line of water, then lowers the logbook. The drone has settled at 71 Hz, the mast is still flexing below the cliff crest, and the transmission now seems to rise directly from the newly revealed ground.
